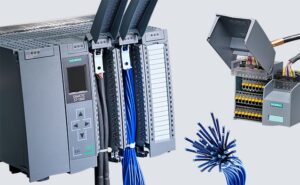

Key Features:
• Modular, scalable, and universally usable system in IP20 level of protection
• The system solution for a variety of automation applications in discrete automation
• Highest performance with excellent usability
• Configurable exclusively in the Totally Integrated Automation
Portal with STEP 7 Professional V12
Performance
• Performance increase through
– Faster command execution
– Language extensions
– New data types
– Faster backplane bus
– Optimized code generation
• Powerful communication:
– PROFINET IO (2-port switch) as standard interface
– Optional additional PROFINET interface, e.g. for network separation
– Expandable with communication modules for bus systems and point-to-point connection
Integrated technology
• Motion Control integrated without additional modules:
– Standardized blocks (PLCopen) for connection of analog and PROFIdrive-capable drives
– The Motion Control functionality supports speed-controlled and positioning axes as well as external encoders
• Comprehensive trace functions for all CPU variables for real-time diagnosis and sporadic error detection; for effective commissioning and quick optimization of drives and controls
• Comprehensive control functionalities: e.g. easily configurable blocks for automatic optimization of the control parameters for optimum control quality
• Additional functions through available technology modules: e.g. high-speed counting, position detection, or measurement functions for signals up to 1 MHz
Security Integrated
• Password-based know-how protection against unauthorized reading and modification of program blocks
• Copy protection for greater protection against unauthorized copying of program blocks:
With copy protection, individual blocks on the SIMATIC memory card can be tied to its serial number so that the block can only be run if the configured memory card is inserted into the CPU.
• Rights concept with four different authorization levels:
Different access rights can be assigned to various user groups. The new protection level 4 makes it possible to also restrict communication to HMI devices.
• Improved manipulation protection: Changed or unauthorized transfers of engineering data are detected by the controller.
• For use of an Ethernet CP (CP 1543-1):
– Additional access protection by means of a firewall
– Setup of secure VPN connections (V12 SP1 or higher)
Design and handling
• CPUs with display for plain text information:
– Information about order numbers, firmware version, and the serial number of all connected modules can be displayed
– Setting the IP address of the CPU and additional network settings directly on site, without programming device
– Display of occurring error messages directly as plain text message, meaning reduction in downtime
• Uniform front connectors for all modules and integrated potential bridges for flexible potential group formation simplify stock keeping and reduce wiring costs
• Integrated DIN rail in the S7-1500 mounting rail: quick and easy installation of additional components such as miniature circuit breakers, relays, etc.
• Central expansion with signal modules: for flexible adaptation to any application
• System cabling for digital signal modules: for fast and clearly arranged connecting to sensors and actuators in the field and simple wiring inside the control cabinet
• Power supply:
– Load current supply modules (power modules) to supply the module with 24 V
– Power supply modules to supply power to the internal module electronics via the backplane bus
• Distributed expansion:
– Use of up to 30 signal modules, communication modules, and technology modules via the PROFINET interface module IM 155-5 for the ET 200MP I/O system
– No difference in terms of handling and system functions in central and distributed operation
Integrated system diagnostics
• Integrated system diagnostics for CPUs, activated by default:
– Consistent plain text display of system diagnostic information in the display, TIA Portal, HMI, and web server, even for drive messages. Messages are updated even if the CPU is in STOP state.
– System diagnostics integrated in the CPU firmware. Configuration by user not required. The diagnostics is automatically updated on configuration changes.
CPU Variants:
• CPU 1511-1 PN
• CPU 1513-1 PN
• CPU 1516-3 PN/DP
Key Features:

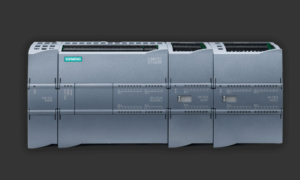

• The new modular miniature controller from the SIMATIC S7 family
Comprising:
– Controller with integrated PROFINET IO controller interface for communication between SIMATIC controllers, HMI, programming device or other automation components
– Communication module with PROFIBUS DP master interface
– Communication module PROFIBUS DP slave interface
– GPRS module for connection to GSM/G mobile phone networks
– Integrated web server with standard and user-specific web pages
– Data logging functionality for archiving of data at runtime from the user program
– Powerful, integrated technology functions such as counting, measuring, closed-loop control, and motion control
– Integrated digital and analog inputs/outputs
– Signal boards for direct use in a controller
– Signal modules for expansion of controllers by input/output channels
– Communication modules for expansion of controllers with additional communications interfaces
– Accessories, e.g. power supply, switch module or SIMATIC Memory Card
• The miniature controller that offers maximum automation at minimum cost.
• Extremely simple installation, programming and operation.
• Large-scale integration, space-saving, powerful.
• Suitable for small to medium-size automation engineering applications.
• Can be used both for simple controls and for complex automation tasks.
• All CPUs can be used in stand-alone mode, in networks and within distributed structures.
• Suitable for applications where programmable controllers would not have been economically viable in the past.
CPU Variants:
• CPU 1211C
• CPU 1212C
• CPU 1214C
• CPU 1215C
• CPU 1217C

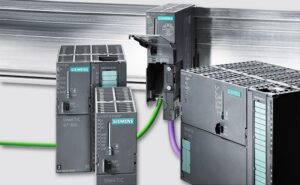

Key Features: S7-300
• The modular mini PLC system for the low and mid-performance ranges
• With comprehensive range of modules for optimum adaptation to the automation task
• Flexible use through simple implementation of distributed structures and versatile networking
• User-friendly handling and uncomplicated design without a fan
• Can be expanded without problems when the tasks increase
• Powerful thanks to a range of integrated functions
S7-300F
• Failsafe automation system for plants with increased safety requirements for production technology
• Based on S7-300
• Additional ET 200S and ET 200M distributed I/O stations complete with safety-related modules can be connected
• Safety-related communication via PROFIBUS DP with PROFIsafe profile
• Standard modules can be used in addition for non-safetyrelevant applications
CPU Variants:
• CPU 312
• CPU 314
• CPU 315-2 DP
• CPU 315-2 PN/DP
• CPU 317-2 DP
• CPU 317-2 PN/DP
• CPU 319-3 PN/DP
Features:
· Modular expansion options
· Built-in RS 485 serial networking port(s)
· Excellent real-time behavior
· Extremely fast and precise process and sequence control
· Seamless control of time-critical processes by means of timed interrupts
· Simple and user-friendly wiring with removable terminal strips on the CPU and expansion modules – permanent wiring

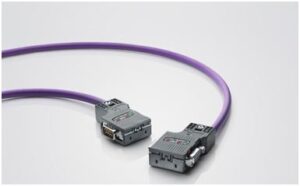

PROFIBUS is unique in offering a fully integrated solution for fieldbus in both discrete and process applications.
PROFIBUS DP is the profile for discrete (or factory) automation. An identical protocol, profiled as PROFIBUS PA, is used for process automation.
From the diagram you’ll see the single cable (the blue line) carrying communications between a controlling device (indicated as ‘DCS’, but it can also be a PLC or a PC) and individual IO devices. Above the blue line are typical factory devices controlled using PROFIBUS DP. Typical process layouts using PROFIBUS PA are indicated below the blue line as ‘segments’ of control.
LOGO! is ideally suited for implementing simple automation tasks in industry and building management systems. The intelligent logic module is characterized by maximum user-friendliness and it leaves little to be desired in terms of functionality, thanks in no small part to the high memory capacity and efficient use of memory.
With the use of expansion modules, LOGO! can control even the most complex plants without any problems.
A wide range of modules make it possible to individually expand LOGO! to 24 digital inputs, 16 digital outputs, 8 analog inputs, and two analog outputs.
Communication modules for AS-Interface and KNX are also available.
With the analog output module, for example, you can solve simple control tasks. This is supported by the special functions of PI controller, ramp function, and analog multiplexing.
Supports AT modem commands and PIN for Siemens modems

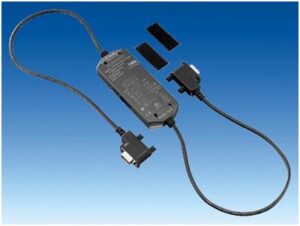

Advantages compared to the standard RS232/PPI Multimaster cable for connection to PCs:
– Suitable cable length for switchboard mounting
– No RS232 adapter (Gender Changer) required for modem connection
– Easy fixation of the cable in the switchboard via Velcro strip
Key Features:

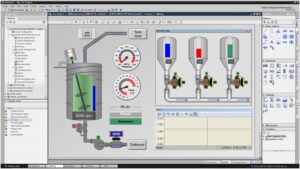

WinCC is designed on a non technology-and industry-specific basis, it is modular and you can extend it in a flexible way.
WinCC makes possible both demanding single-user applications in mechanical engineering as well as complex multi-user solutions or even distributed systems including several servers and clients – also internet-based – in plant visualization.
WinCC combines both production and process automation – numerous references across any number of applications and branches of industry prove this. WinCC has established as an industry standard in the field of process visualization, no matter if you look at it as an autonomous SCADA-System (Supervisory Control and Data Acquisition) or the HMI component of SIMATIC PCS 7.
A large number of WinCC Options and Add-ons allows industry-specific solutions, e.g. in pharmaceutical industry or water treatment applications.
Key Features:
WinCC is designed on a non technology-and industry-specific basis, it is modular and you can extend it in a flexible way.
WinCC makes possible both demanding single-user applications in mechanical engineering as well as complex multi-user solutions or even distributed systems including several servers and clients – also internet-based – in plant visualization.
WinCC combines both production and process automation – numerous references across any number of applications and branches of industry prove this. WinCC has established as an industry standard in the field of process visualization, no matter if you look at it as an autonomous SCADA-System (Supervisory Control and Data Acquisition) or the HMI component of SIMATIC PCS 7.
A large number of WinCC Options and Add-ons allows industry-specific solutions, e.g. in pharmaceutical industry or water treatment applications.
The platform for production digitization in manufacturing and production, linking information across all corporate levels increases the demands placed on the computing power, functioning, and availability of industrial PCs.
This is a trend that will only intensify with the growth of digitization. According to experts, the volume of digital information will increase tenfold in the next five years, particularly in the area of industrial processes. SIMATIC industrial PCs offer an innovative platform with long-term availability to prepare your machines and plants for the challenges of the Digital Factory. Do you need to process and edit a large volume of production related information? Then take advantage of our wide range of products for tasks such as:
• Control and monitoring of control-room processes using Rack PCs and a multimonitor configuration
• Fast and reliable data transfer using a maintenance-free Box PC as a compact gateway to the enterprise cloud
• Powerful data acquisition and machine automation using rugged Box PCs
• Combined monitoring, operation, and PC-based control using Panel PCs
• Mobile data monitoring and acquisition using industrial Tablet PCs
